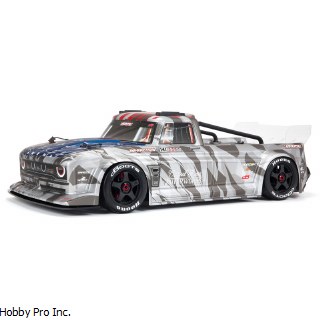

1/7 INFRACTION V2 All-Road

ARA7615V2T2

Features
Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Compatible with Spektrum® Dashboard™ app for iOS or Android
ARRMA® ADS-15M Waterproof* Steering Servo
Spektrum® SPMS650 Waterproof* Brake Servo
Spektrum® Firma™ 150A Smart ESC
Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears
New electronics module
New mechanical handbrake feature
Fresh street body look with matte gloss effect designs
Tunable wing for customizing the downforce
Full-width front splitter balances downforce distribution
Rear diffuser increases downforce and grip for cornering faster and with confidence
Adjustable front and rear body mounts
3mm Plate, 6061-T6 anodized aluminum chassis
Center brace for maximum durability
Heavy-duty drivetrain with durable steel driveshafts throughout
High-speed center driveshaft support
Rubber-shielded bearings
All-metal diff outdrives and gearbox internals
Updated internal gears with new tooth profile for increased strength
Lower internal gear ratio to reduce the center line transmission RPM, reducing center drive shaft resonance and increasing drivetrain durability
Oil-filled, adjustable, anodized aluminum shocks
Black-anodized aluminum front and rear shock towers
Waterproof* receiver box
Large battery trays
5-spoke wheels
Durable wheel hubs
dBoots® Hoons™ all-road tires
2-year limited warranty (see manual for details)
* For details on waterproof standards, please refer to the product instruction manuals

FEATURES
Chassis: 0.12 (3mm) thick 6061 T-6 aluminum with front splitter
and a rear diffuser that balances downforce
Drive: Four wheel with steel driveshafts
Differentials: Three oil-filled metal gear
Brushless Motor: Spektrum Firma 4074 non-sensored
Electronic Speed Control: Spektrum Firma 150A Smart, waterproof
with IC5 battery connectors (EC5 compatible)
Rear Brake: Metal pads and discs, vented, Spektrum SPMS650 brake
servo, driver controls handbrake from a switch on transmitter for
thrilling drifting, hooning and stunt action
Radio: Spektrum DX3 2.4GHz DSMR 3-ch with voltage indicator for
Spektrum Smart batteries, SR6110AT receiver features AVC
(Active Vehicle Control) for high-speed stability, Bluetooth
connection to mobile devices allows allows real-time telemetry
viewing including ESC temperature, receiver (BEC) voltage, drive
pack voltage and motor RPM, requires downloading free Spektrumd
dashboard app
Steering Servo: ARRMA ADS-15M waterproof, metal geared, 195 oz-in
(15 kg-cm) torque 6V, 25 tooth spline
Shocks: Aluminum body, oil-filled
Shock Towers: Black anodized aluminum
Tires: dBoots Hoons, white firmness compound
Wheels: 5-spoke, 17mm hex, black in color
Body: Trimmed scale truck with matte gloss effect designs and
adjustable wing,
Ball Bearings: Full set, rubber shielded
Warranty: 2-year limited
INCLUDES
ARRMA 1:7 scale Infraction Street Bash Resto Mod Truck 6S BLX 4WD RTR
Spektrum DX3 DSMR Transmitter with SR6110AT Receiver
Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv Brushless Motor
ARRMA ADS-15M Waterproof Servo
IC5 Loop Connector (for use with single 4S or 6S battery pack)
REQUIREMENTS
Batteries: Two 2S, or two 3S LiPo Batteries (35C 5000mAh minimum,
100C 5000mAh recommended)
Battery Charger and Charging Bag: Compatible with selected batteries
AA Batteries: Four for transmitter
SPECIFICATIONS
Vehicle:
Length: 27.36 in (695mm)
Front Width: 12.13 in (308mm)
Rear Width: 12.01 in (305mm)
Height: 7.87 in (200mm)
Ride Height: 0.59 in (15mm)
Weight: 11lbs (5kg)
Front and Rear Spring Rate: 4.7Nmm
Front Shock Diameter: 3.03 in (77mm)
Rear Shock Diameter: 3.43 in (87mm)
Shock Oil Viscosity: 2000cST
Diff Oil Viscosity: 10k100k10kcST
Internal Gear Ratio: Front 2.8, Rear 3.21
Final Gear Ratio: Front 4.60 - 9.90
Spur Gear: 46T metal
Pinion Gear: 15T metal installed, 25T high-speed pinion also included
Torque Split: 5050
Max Speed: 80+mph (128+kph) with 6S LiPo and high-speed pinion gear
gear installed
Max Battery Size: 7.09 x 2.17 x 2.76 in (180 x 55 x 70mm)
Tire Diameter: 3.94 in (100mm)
Wheel Bead Diameter: 2.95 in (75mm), 3.27 in (83mm)
Approximate Assembly Time: Less than an hour
Experience Level: Intermediate
Body:
Length: 27.44 in (697mm)
Width: 12.2 in (310mm)
Height: 7.09 in (180mm)
COMMENTS
Available in the following body colors,
Blue, ARAD30BB
Silver, ARAD30SS
