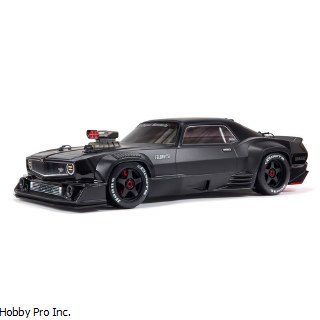

1/7 Felony All-Road 6S BLX RTR

ARA7617V2T1

Features
Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Compatible with Spektrum® Dashboard™ app for iOS or Android
ARRMA® ADS-15M Waterproof Servo
Spektrum® Firma™ 150A Smart ESC
Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D input gears
Muscle car handling with regular front and larger rear tires
Front and rear gearbox ratios matched to tire sizes
Customizable scale muscle car looks
Includes interchangeable accessory kit and decals
Multi-part undercut body design
Adjustable front and rear body mounts
Aerodynamically adjustable wing
3mm Plate, 6061-T6 anodized aluminum chassis
Center brace for maximum durability
Heavy-duty drivetrain with durable steel driveshafts throughout
High-speed center driveshaft support
Three oil-filled metal gear diffs
All-metal diff outdrives and gearbox internals
Oil-filled, adjustable, anodized aluminum shocks
Black-anodized aluminum front and rear shock towers
Front bumper and splitter
Rear diffuser with exhaust detailing
Waterproof* receiver box
Large battery trays
Five-spoke wheels
Durable wheel hubs
dBoots® Hoons™ all-road tires
2-year limited warranty (see manual for details)
* For details on waterproof standards, please refer to the product instruction manuals

FEATURES
Chassis: 0.12 (3mm) thick 6061 T-6 aluminum
Drive: Four wheel with steel driveshafts
Differentials: Three oil-filled metal gear
Brushless Motor: Spektrum Firma 4074
Electronic Speed Control: Spektrum Firma 150A Smart, waterproof
with IC5 battery connectors (EC5 compatible)
Radio: Spektrum DX3 2.4GHz DSMR 3-ch with voltage indicator for
Spektrum Smart batteries, SR6110AT receiver features AVC
(Active Vehicle Control) for high-speed stability, Bluetooth
connection to mobile devices allows allows real-time telemetry
viewing including ESC temperature, receiver (BEC) voltage, drive
pack voltage and motor RPM, requires downloading free Spektrumd
dashboard app
Steering Servo: ARRMA ADS-15M waterproof, metal geared, 195 oz-in
(15 kg-cm) torque 6V, 25 tooth spline
Shocks: Aluminum body, oil-filled
Shock Towers: Black anodized aluminum
Tires: dBoots Hoons
Wheels: 5-spoke, 17mm hex
Body: Trimmed and printed scale muscle car with adjustable wing,
interchangeable accessory kit and decals
Ball Bearings: Full set, rubber shielded
Warranty: 2-year limited
INCLUDES
ARRMA Felony Retro Mod Street Basher 6S BLX 4WD RTR
Spektrum DX3 DSMR Transmitter with SR6110AT Receiver
Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv Brushless Motor
ARRMA ADS-15M Waterproof Servo
IC5 Loop Connector (for use with single 4S or 6S battery pack)
REQUIREMENTS
Batteries: Two 2S, or two 3S LiPo Batteries (35C 5000mAh minimum,
100C 5000mAh recommended)
Battery Charger and Charging Bag: Compatible with selected batteries
AA Batteries: Four for transmitter
SPECIFICATIONS
Vehicle:
Length: 25.54 in (725mm)
Front Width: 12.13 in (308mm)
Rear Width: 12.91 in (328mm)
Ride Height: 0.59 in (15mm)
Height: 7.56 in (192mm)
Weight: 11lbs (5kg)
Front and Rear Spring Rate: 4.7Nmm
Shock Oil Viscosity: 2000cST
Diff Oil Viscosity: 10k100k10kcST
Internal Gear Ratio: Front 2.8, Rear 3.21
Final Gear Ratio: Front 8.58, Rear 9.43
Spur Gear: 46T metal
Pinion Gear: 16T metal (27T high-speed pinion gear also included)
Max Speed: 80+mph (128+kph) with 6S LiPo and high-speed pinion gear
gear installed
Max Battery Size: 7.09 x 2.17 x 2.76 in (180 x 55 x 70mm)
Tire Diameter: 3.94 in (100mm), 4.21 in (107mm)
Wheel Bead Diameter: 2.95 in (75mm), 3.27 in (83mm)
Approximate Assembly Time: Less than an hour
Experience Level: Intermediate
Body:
Length: 27.56 in (700mm)
Width: 12.91 in (328mm)
Height: 6.93 in (176mm)
COMMENTS
Available in the following body colors,
Black, ARAD31LL
Orange, ARAD31NN
